Colored Pavement with Aggregate: System Design and Material Guide

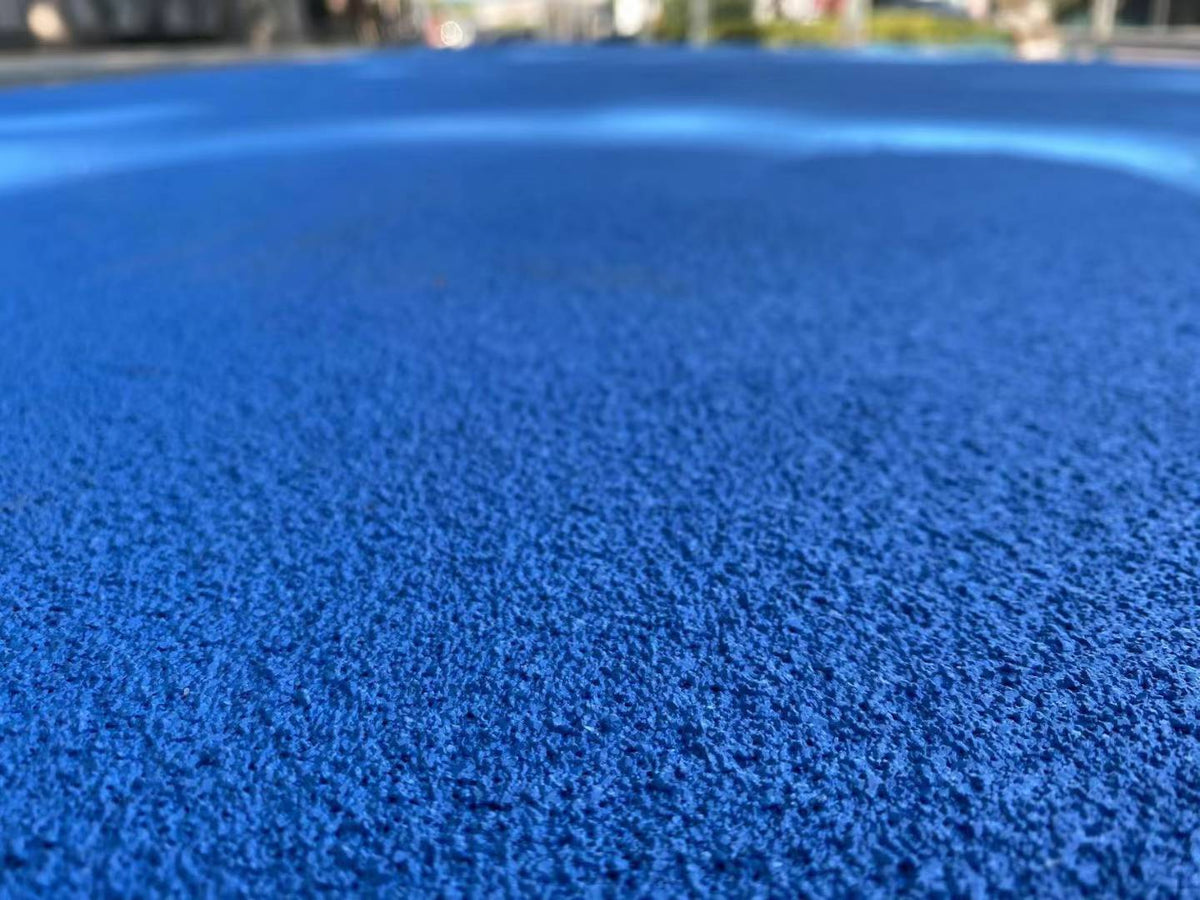

Colored pavement with aggregate combines visible color with a textured surface. Depending on the specification, colored aggregate may be broadcast into a compatible resin, blended into a bound system or used as part of a decorative pavement assembly. The result can support route definition, surface grip and architectural appearance.
What makes an aggregate pavement system different?
A simple colored coating forms a relatively thin film over the substrate. An aggregate system introduces mineral or ceramic particles that contribute texture, color and wear characteristics. The complete system normally includes the existing substrate, surface preparation, primer where required, binder, aggregate and a defined curing process.
No single aggregate is suitable for every project. Particle size, shape, hardness, color consistency, cleanliness and compatibility with the binder all influence the finished surface. The selected binder must also match the substrate, climate, installation method and expected traffic.
Typical applications
- High-friction approaches to crossings, ramps and conflict zones
- Colored bicycle lanes and shared paths
- Pedestrian plazas, parks and landscape routes
- Parking guidance and clearly separated traffic areas
- Decorative surfacing around commercial or public facilities
Aggregate selection factors
For functional road surfacing, assess abrasion resistance, polishing behavior and particle grading. For decorative areas, color stability and visual consistency may receive more attention. In both cases, the aggregate should be clean and dry when installed according to the approved system.
Coverage depends on particle size, application rate, surface profile and whether the aggregate is broadcast to excess or precisely blended. Project estimates should be confirmed through a trial panel rather than copied from an unrelated site.
Binder and substrate compatibility
The binder holds the aggregate in place and transfers traffic loads to the substrate. Resin selection should consider adhesion, working time, curing temperature, UV exposure, moisture and expected movement. Applying a strong aggregate over a weak, contaminated or unstable pavement will not solve underlying substrate problems.
Before installation, identify cracks, oil, dust, laitance, old coatings and moisture. Repairs and preparation must produce a sound surface with the profile required by the system supplier. Areas exposed to turning vehicles or braking forces deserve particular attention.
Installation sequence
- Inspect and document the asphalt or concrete substrate.
- Complete repairs, cleaning and mechanical preparation where specified.
- Mask edges and confirm the layout and color zones.
- Apply primer and binder at the approved rate.
- Broadcast or place the aggregate uniformly.
- Remove loose excess material after the system has cured.
- Inspect adhesion, coverage, texture and edge details before opening.
Specify the whole system
A useful project brief should state the substrate, traffic type, target color, required texture, project area, environmental conditions and maintenance expectations. Avoid selecting aggregate only by color. A successful colored pavement with aggregate depends on how every component works together.
